Galileo New Technologies

Galileo New Technologies is a digital EEG (Electroencephalography) system that supports up to 128 channels and that performs several clinical and scientific analysis and processings such as filtering, spectral analysis, 3-D amplitude and spectral maps, etc. This job was committed to my company (BrainWare) by EBNeuro, and I’ve been the architect of the Software side of the system. I also wrote about 70% of the code of the project (release 1.0), not including the database. This includes the Direct3D programming, the localization and internationalization routines (with a simple solution that easily allows you to translate your software in every language, including Chinese), all the major graph routines (both the head maps and the traces), the Digital Signal Processor module, the Plug-in extensions, the Digital Video acquisition module synchronized with the EEG signals (up to 48 hours of digital video synchronized with the traces), and about all the things that you can argue from the following screenshots. Actually this product is supported by the internal EBNeuro staff and the latest release is 2.31.
After this product has been released I’ve developed some extension to it that you can purchase from the EBNeuro or that you can have from me: this includes:

· The Voice Command Module: a separate tool that allows you to command Galileo NT using the voice;

· The Spectral Cartooning and Coherence Package, that allows you to view either 2-D or 3-D spectral maps and compute Spectral Coherence and many other parameters;

· The Statistical Package Tool, for computing t-test, and much more.

· The B.C.I. Module: that instantly converts your E.E.G. system in a Brain Computer Interface device.

· The BackAverager tool: convert your EEG system in a EP system with this tool. Every EEG trace can be segmentated depending in events (states, messages) inserted into the EEG trace. Cartoon up to 64 3-D Maps, Fine Aligment, On-Line Single-Trial Removal. Unlimited number of Averages. Works with any EDF file.

Screen Shots

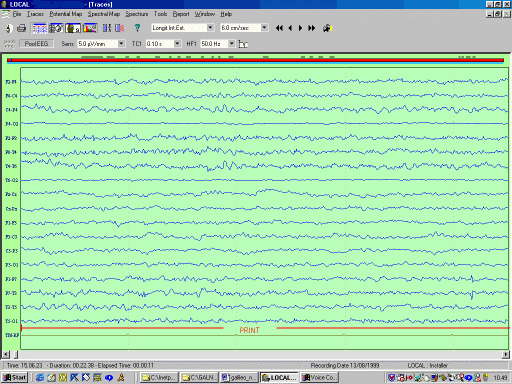

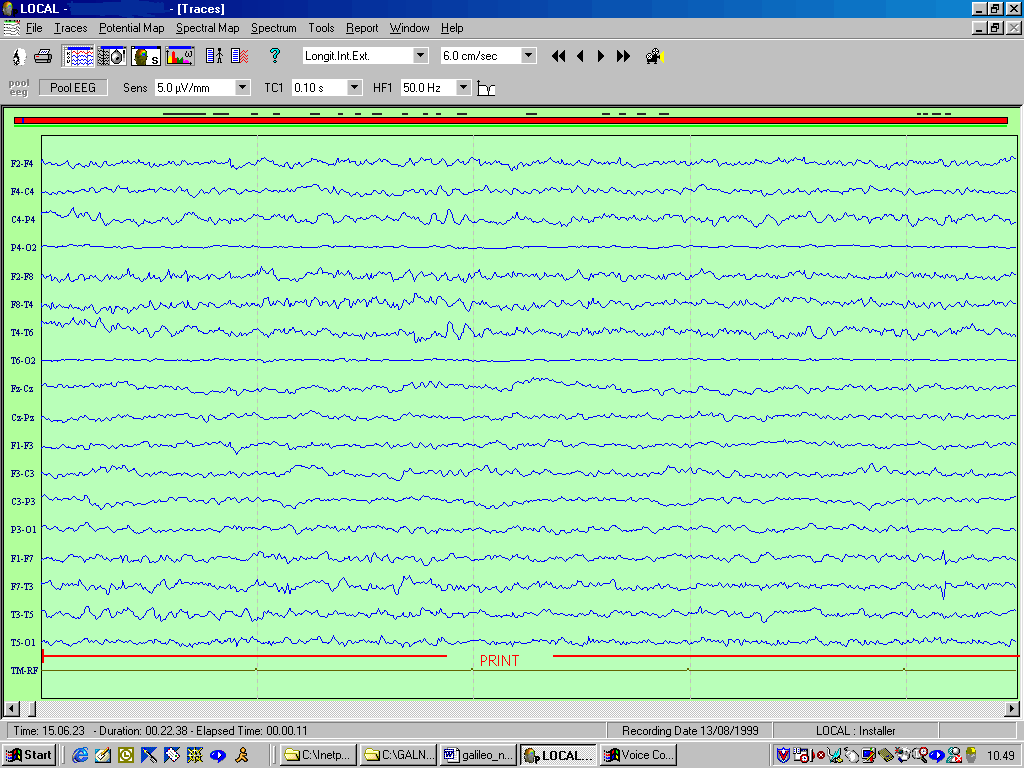

The Trace Window

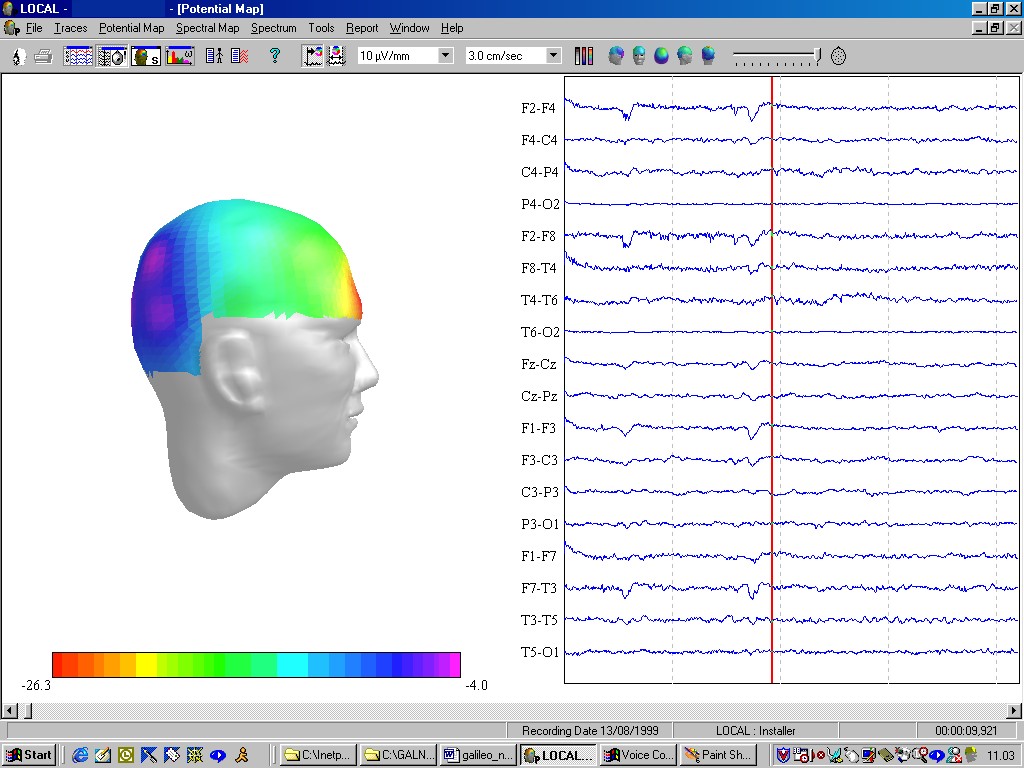

The Potential Map Window

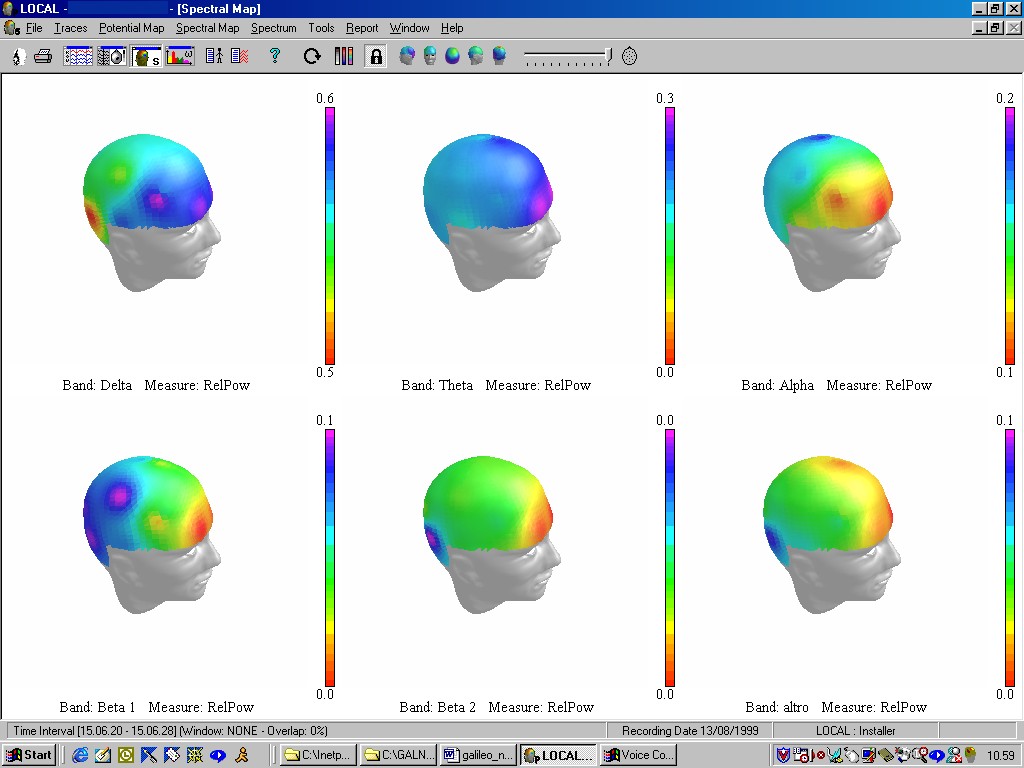

The Spectral Map Window

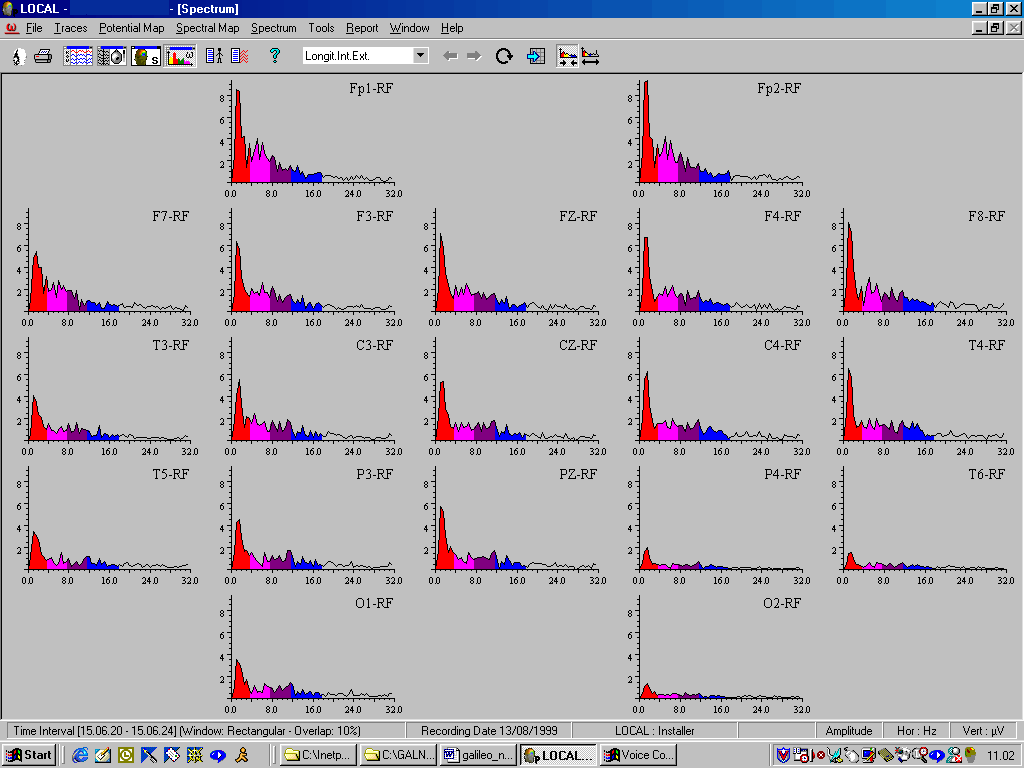

The Spectral Analysis Window
