THE NEW BF++ WEB PAGE HAS MOVED AT WWW.BRAINTERFACE.COM



THE NEW BF++ WEB PAGE HAS MOVED AT WWW.BRAINTERFACE.COM



THE NEW BF++ WEB PAGE HAS MOVED AT WWW.BRAINTERFACE.COM











Bio-Feedback/Brain Computer Interface

separator images
The Bio-Feedback Framework (BF++) has won the "Engineering" Award at the second Brain Computer Interface Workshop (Albany, NY 12-16 June 2002).

The work that I did and that is described here and in the related pages is dedicated to Renato Grasso and Alek Kostov

OVERVIEW

The Bio-Feedback SDK (BF++) is a C++ framework that helps you to develop a Bio-Feedback system, providing an Object Oriented model that is highly portable under many Operating Systems and adaptable to a wide range of situations. It has been designed with an high abstraction level with respect to the hardware to make it possible (and easy) to use multiple and mixed input sensors (EMG, breath, voice, digital video, EEG) in order to use all the patients residual capabilities or to change the input/output devices without the necessity to rebuild the whole system. The Bio Feedback SDK (BF++) can be obtained upon request to me, and it was originally developed for Brain-Computer Interface applications.

BRAIN COMPUTER INTERFACES

Brain Computer Interfaces (BCIs) based on Electroencephalographic (EEG) signals require on-line detection of mental states from spontaneous activity: different cortical areas are activated while thinking different things (i.e. a matematical computation, an imagined arm movement, a music composition, etc...). The identification of these different "mental states" can be used to drive external devices: a mouse cursor can be moved while a subject thinks for example to move the right arm (i.e. cursor moves into the right direction), the left arm (left direction), etc... This is a great opportunity for disabled people with severe impairments.

DOCUMENTATION :-(((

Today, it lacks of a well structured documentation (e.g. help file, examples, etc..), but it will be available soon (I will release the first draft in September). The only docs that can give you an idea about the principles of the proposed model are the following ones:

  • the works presented in the 3rd International Conference of BioElectroMagnetism, in Bled (Slovenia). To read it click here. To see the Power Point presentation of the 3rd International Conference of BioElectroMagnetism, click here (200KB). To download the zipped version (120 KB) click here. Note that some improvements have been made since that event;
  • A full paper will be published in 2003 about BF++ in "Computher Methods of Information in Medicine". It was originally developed to build a Brain Computer Interface system;
  • A short paper has also been submitted and it will be hopefully be published in early 2003.
  • I did another "quick" PowerPoint presentation presented before the wonderful talk of Prof. Jonathan Wolpaw at St. Lucia Rehabilitation Hospital (Rome, Italy), the 15th of December 2000. You can see my presentation (without videos and ... voice!) here.
    The presence of such a BCI Guru has been a great opportunity to learn a lot of things from a scientist that has done the history and is doing the... future of Brain Computer Interface. The event was completed with the great presentation held by our "friend" Josè Millan. I'll remember that day forever!

ACKNOWLEDGMENTS

While I did the dirty work of writing the majority of the code, this SDK is the result of the work, suggestion and feedback of a research group, and that without them...

The Team is actually formed by:
Prof. Maria Grazia Marciani, that is my Chief and that for this reason is the best person in all over the world!
Prof. Fabio Babiloni, that is the Master and that has "just" written some important pages in EEG literature.
Febo Cincotti, that was the "inventor" of the italian BCI connection (and one of the most acute researchers I've ever known).

Also in the past worked at the italian BCI connection:
Francesco Semeraro, engineer,
Angela Cattini, engineer,
Vittorio Gigli, engineer.

I also would like to thank, for their support, inspiration and patience, my wife, Luisa, and my daughter Ludovica, that accepted that I did this work for free, so that they had a "part-time" husband/father for long "time intervals". In particular I would also like to thank the Wadsworth Center, for being my main scientific sponsors and for giving me the main opportunities to share my ideas with the community. For different reasons I have to thank: Jonathan Wolpaw and his wonderful wife Liz, Theresa Vaughan, Gervin Schalk, Dennis McFarland and all the other memebers of the team. I also would like to thank Niels Birbaumer, Alan Gevins, Fernando Lopez da Silva, Andrea Kuebler, nd all the friends of mine that encouraged me in this reasearch field. Finally, I have also to mention the EBNeuro staff that provided me some very useful prototypes and revealed me many industrial secrets.


Some more (confusing) info about BF++

A set of C++ classes have been defined in order to easily develop a Bio-Feedback system. They have been designed with the aim of being independent on the platform used (both SW and HW) because a main goal is to use it with a Palm PC or in an embedded system. Also code reuse was a main goal, because it is fundamental for disables to have a wide range of opportunities to use every residual capability that they have. Matrix computation and FFT routines are also included. Actually the Signal Space Projection implementation requires about 50 lines of code.

Implementing a solution based on Mahalanobis distance required also less than 60 lines of code.

Actually the system runs on a Windows machine, on Linux (demonstration and off-line analisys) and Windows CE (there is a working BCI system prototype), but this is not required. Anyway, even if the framework is platform independent, one can use some features that are Win32 specific: in particular, in a BCI application of mine, the 3-D Spectral Maps (computed in "realtime") are based on Microsoft Direct3D technology, while voice commands and speech synthesis are obtained through the MS Speech API (4.0) and IBM ViaVoice SDK (for the italian voice engine). I'm also working in the integration of Accessibility options provided by Windows (see the MSDN Magazine publication).

Status:

After the BCII meeting (Albany, 12-16 June 2002) I am rewriting some minor things and a complete documentation.

The programming books that influenced the new release are:

Modern C++ Design: Generic Programming and Design Patterns Applied (Andrei Alexandrescu, Addison Wesley 2001)

Design Patterns CD: Elements of Reusable Object-Oriented Software (Erich Gamma et al., Addison Wesley, 1998)

Effective C++ CD: 85 Specific Ways to Improve Your Programs and Designs (Scott Meyers, Addison Wesley, 1999)

Exceptional C++: 47 Engineering Puzzles, Programming Problems, and Solutions (Herb Sutter, Addison Wesley, 2000)

The C++ Standard Library: A Tutorial and Reference (Nicolai Josuttis, Addison Wesley, 2000)

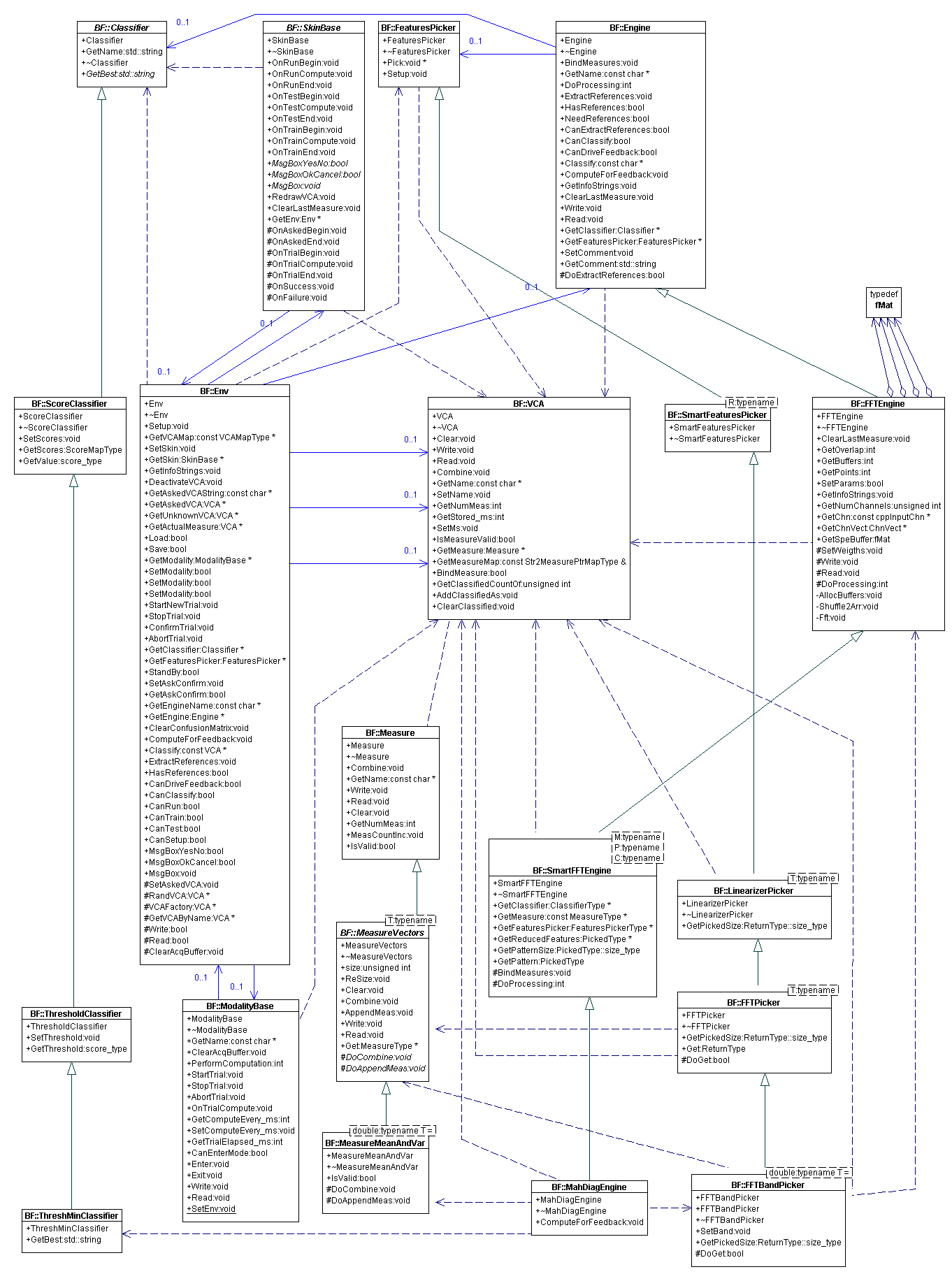

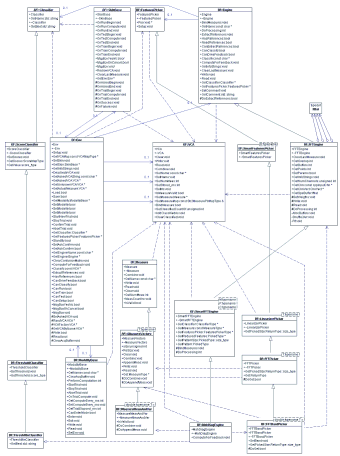

The framework is described by the following UML chart (click to enlarge):

BF::Env is the concertmaster of the framework. It holds a reference to a BF::Engine, which is responsible of the "algorithmic" aspects, some BF::VCAs which describe the volountarily controlled activity that the subject wants to use (e.g. the imagination of a movement), and a BF::Skin which provides the feedback to the user. To each VCA one or more BF::Measures can be associated. At this level, it is not important to define what these measures do represent: they could be mean values, images, covariance matrices or a set of them. It is sufficient to have the opportunity to bind one or more generic measures to each VCA. This is important beacause usually BF systems implement a training phase and a running phase. During the training the system have to extract some reference measures that are later on used in the running modality: acquired data are compared with the reference measures and then a classification is demanded to the execution of a "best match" routine. This last task is performed by the BF::Classifier. Sometimes a subset of a measure is needed (e.g. if the measure is a spectrum usually a limited spectral band is sufficient) and is the task performed by the BF::FeaturesPicker object.
To implement a BF system it is sufficient to inherit some of the provided helper classes and customize their behaviour. For example, the SSP (Signal Space Projection) implementation uses other helper objects that are provided to the framework: the FFTEngine performs the spectral analysis of some temporal series, while the SmartFFTEngine provides (through templates) some more customization options that are finally specialized in the SSPEngine. It has to override just two virtual functions: DoExtractPattern that is invoked when the system switches from the training to the running mode and ClassRule that is invoked whenever a classification is tried. In the case of the SSP system that's all, because other helper classes are used to get the mean spectra of the input signals while the FeaturePicker (and descendents) automatically select just a part of the mean spectra data (e.g. a spectral band). Put in other words: the "SSP system" has been implemented by specializing a SmartFFTEngine (using a MeasureMean object, a ThresholdMax object, and FFTBandPicker object) and overriding two virtual functions.



This is the result:

//begin of code

#include "stl.h"
#include <fstream>
#pragma hdrstop
#include "SSPEngine.h"
#include "matrix_utils.h"
#include "newmatap.h"
SSPEngine::SSPEngine(ChnVect *chnv, int _fft_points, int _fft_buff_count, int _fft_overlap) :
           SmartFFTEngine<ThresholdMax, MeasureMean<>, FFTBandPicker<> >
           (chnv, _fft_points, _fft_buff_count, _fft_overlap)
{  GetFeaturesPicker()->SetBand(8., 30.);   }

bool SSPEngine::DoExtractPatterns(const VCAMap& sm)
{  Inherited::DoExtractPatterns(sm, rest_state);

NEWMAT::Matrix pseudo_inv(sm.size(), GetPatternSize(sm.begin()->second)); fPseudoInv.ReSize(pseudo_inv.Nrows(), pseudo_inv.Ncols());

NEWMAT::Matrix _mat(pseudo_inv.Ncols(), pseudo_inv.Nrows());
PickedType meas;

for (vca_cIt i = sm.begin(); i != sm.end(); ++i) { meas = GetPattern((*i).second, "Mean"); for (unsigned int index = 0; index < meas.size(); ++index) _mat(index + 1, distance(sm.begin(), i) + 1) = meas[index]; }

NEWMAT::DiagonalMatrix D; NEWMAT::Matrix U, V;
SVD(_mat, D, U, V);

pseudo_inv = V * D.i() * U.t(); for (unsigned int r = 0; r < fPseudoInv.Nrows(); r++) for (unsigned int c = 0; c < fPseudoInv.Ncols(); c++) fPseudoInv[r][c] = pseudo_inv[r][c];

return true; }

void BF_SSPEngine::ClassRule(const VCAMap& sm, VCA* am_) { fMat matrixState(fPseudoInv * fMat(GetPattern(am_, "Mean")));

ScoreMapType smt;
for (vca_cIt i = sm.begin(); i != sm.end(); ++i)
smt[(*i).first] = matrixState[distance(sm.begin(), i)][0];
   GetClassifier()->SetScores(smt);
}

//end of code

While I do not pretend that you understand from these few (uncommented!) lines how the framework works (an article will be published in "Computer Methods of Information in Medicine"), it is important that you realize that with just few lines of code you can build a whole working BF system, and that the code is portable under every platform that supports a C++ compiler. What you have to do is simply override few virtual functions, that usually are: DoExtractPatterns, which is invoked when the training is finished and the user switches to the running modality, DoProcessing which is often already available as it is provided by an existing engine and that is responsible of the computation, and ClassRule, which is responsible in the running modality to compare the processed data with the Reference Pattern data (fPseudoInv).

Just two more words about the constructor. The following lines are pure dynamite:

SSPEngine::SSPEngine(ChnVect *chnv, int _fft_points, int _fft_buff_count, int _fft_overlap) :
  SmartFFTEngine<ThresholdMax,
    MeasureMean<>,
    FFTBandPicker<> >
     (chnv, _fft_points, _fft_buff_count, _fft_overlap)
{  GetFeaturesPicker()->SetBand(8., 30.); }

What they do is great: SSPEngine is an engine with FFT capabilities. Each time that a measure is performed the MeanSpectra of the input signals are computed automagically as we have decided it (see 2nd template parameter MeasureMean<>). Optionally we could choose to compute the Mean and SD by simply replacing MeasureMean with MeasureMeanAndSD<>. The FFTBandPicker is another object that allows us to use just an FFT Band for all the computations (probably frequencies above 40 Hz are useless in EEG based systems). This is the Feature reduction policy: if we want to use only the data whose amplitude exceeds a certain value it is sufficient to provide a valid FeatureReduction derived class. Finally, ThresholdMax means that a classification occurs in the following way: to each VCA a floating point value is associated and if the Max value exceeds the second to the best by at least a given Threshold then a classification occurs, otherwise the trial remains unclassified. Now, hopefully, it's less obscure how it is possible to build a BCI system with just few lines of code.



Some Specs about a Win32 implementation (ver. 1.1) compiled with the free bcc55 Borland command line compiler - except the SkinWin1.DLL which uses Borland C++ Builder 5 (BCB5), with the Embedded Visual C++ 3.0 (EVC 3, X86, ARM and MIPS processors), with Microsoft VC 6.0 (VC6), with Microsoft VC 7.0 (VC7) with and without managed extensions (.NET platform) and the free gcc 2.95.3-6:

DLL VC6 VC7 (unma-naged) VC7 (mana-ged) EVC 3.0 x86 EVC 3.0 ARM
EVC 3.0 MIPS

GNU GCC 2.95.3-6

BCB5 Functionalities
BFKernel.dll 64 KB 64 KB 176 KB 45 KB 68 KB 92 KB 154 KB 94 KB This is the kernel of the Bio-Feedback SDK. It includes the basics for every BF engine. Effort has been taken to minimize its size.
XMLUtils.dll 72 KB 68 KB 156 KB --- --- --- 161 KB 91 KB A DLL generated from the source code of Sebastien Andrivet (AdvXMLParser Version 1.1.4c) and which is used for loading and saving the files.
Newmat.dll 208 KB 196 KB 344 KB 150 KB 218 KB 249 KB 353 KB 271 KB This the cross-platform Matrix C++ framework developed by Robert Davies (called NEWMAT). Latest updates can be found here. It is not required to build a Bio-Feedback system. It is, however, the best C++ class library I've found on the net. And it's free! BTW, it is used by the Signal Space Projection (SSP) algorithm.
BCIStub.dll 64 KB 68 KB 156 KB 28 KB 38 KB 41 KB 133 KB 80 KB A Win32 GUI BCI customizer: it allows to select the engine and skin to use and allows also to set a lot of parameters.
FFTEng.dll 32 KB 22 KB 60 KB 12 KB 17 KB 21 KB 114 KB 36 KB A generic engine which add FFT capabilities.
Win32skn.dll 24 KB 12 KB 22 KB 5 KB 6 KB 7 KB 94 KB 22 KB A generic (abstract) skin for Win32 applications. It implements some GUI aspects such as MessageBox, etc..
Win32SDK.skn 48 KB 34 KB 82 KB 20 KB 25 KB 28 KB 139 KB 62 KB A skin entirely written using the plain SDK.
SkinWin1.skn --- --- --- --- --- --- --- 132 KB + VCL This is a Win32 specific skin for linear classifiers. It still depends on VCL which makes it compile just with Borland C++ Builder 5. Actually I'm solving this problem. This is the also only DLL which contains code that is specific to Microsoft Windows. The other ones can be recompiled under different platforms/C++ compilers.
MahDiag.eng 40 KB 44 KB 108 KB 19 KB 29 KB 41 KB 125 KB 60 KB This is an implementation of the Mahalanobis Diagonal algorithm for a BCI system. This is also platform independent.
SSP.eng --- 48 KB 120 KB --- --- --- 140 KB 74 KB This is an implementation of the SSP algorithm for a BCI system. This is also platform independent.

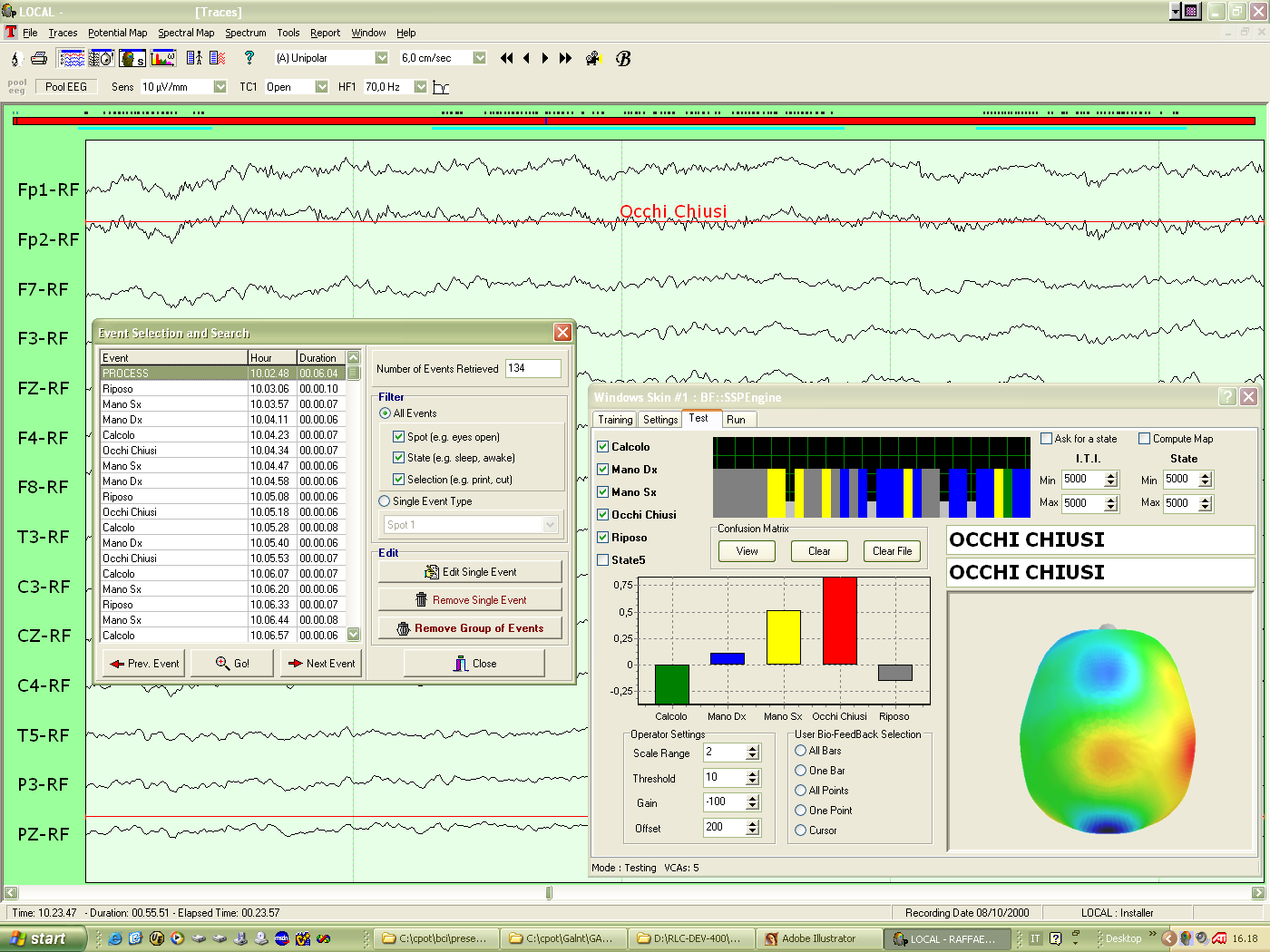

Here you can have a screenshot of a Brain Computer Interface application: the SSP engine has been plugged-in in a commercial EEG system (Galileo, by EBNeuro).

screenshot of a BCI application



Related Publications

Bianchi L, Babiloni F, Cincotti F, Salinari S, Marciani MG, Introducing BF++: A C++ Framework for Cognitive Bio-Feedback Systems Design, Methods of Information in Medicine, in press

Febo Cincotti, Claudio Babiloni, Filippo Carducci, Luigi Bianchi, José del R. Millán, Josep Mouriño, Serenella Salinari, Maria Grazia Marciani and Fabio Babiloni (2002), Classification of EEG mental patterns by using two scalp electrodes and Mahalanobis distance-based classifiers, Methods of Information in Medicine, December 2002

Babiloni F, Cincotti F, Bianchi L, Pirri G, Millán J, Mouriño J, Salinari S, and Marciani MG (2001), Recognition of Imagined Hand Movements with Low Resolution Surface Laplacian and Linear Classifiers, Medical Engineering & Physics, Vol 23/5, pp 323-328

Babiloni F, Cincotti F, Bianchi L, Millán J, Mouriño J, Salinari S, Marciani MG (2001). Recognition of Imagined Hand Movements with Low Resolution Surface Laplacian and Linear Classifiers, Human Brain Mapping 2001, 10-14 June, Brighton, U.K.

Bianchi L, Babiloni F, Cincotti F, Salinari S, Marciani MG (2000). An Object Oriented Approach To Biofeedback Applications For Disabled People, 3 International Conference on BioElectroMagnetism, Bled, Slovenia, October 2000.

Babiloni F, Cincotti F, Bianchi L, Pirri G, Millán J, Mouriño J, Salinari S, Marciani MG (2000). Recognition of Imagined Hand Movements by Signal Space Projection and Fisher Discriminant Linear Classifiers, 3 International Conference on BioElectroMagnetism, Bled, Slovenia, October 2000.

Cincotti F, Mouriño J, Pirri G, Millán J, Bianchi L, Salinari S, Marciani MG, and Babiloni F (2000). Low Resolution Surface Laplacian Computation for Brain Computer Interface Classifiers, 3 International Conference on BioElectroMagnetism, Bled, Slovenia, October 2000.

Babiloni F, Cincotti F, Lazzarini L, Millan J, Mouriño J, Varsta M,  Heikkonen J, Bianchi L, Marciani MG. (2000). Linear Classification of Low-Resolution EEG Patterns produced by Imagined Hand Movements. IEEE Trans. On Rehabil. Engng., Piscataway, New Jersey, USA, June, 2000.

Babiloni F, Cincotti F, Bianchi L, Lazzarini L, Millán J, Mouriño J, and Marciani MG (1999). Surface Laplacian Electrodes for Adaptive Brain Interfaces, First Brain Computer Interface World Conference, Albany, July 1999, pag. 40–43.

Babiloni F, Cincotti F, Bianchi L, Lazzarini L, Millán J, Mouriño J, and Marciani MG (1999). On the Use of Laplacian Electrodes for Adaptive Brain Interfaces. 3rd International Workshop on Biosignal Interpretation, pp. 354–357. June 12-14, 1999, Chicago, USA.

Babiloni F, Cincotti F, Lazzarini L, Millan J, Mouriño J, Varsta M,  Heikkonen J, Bianchi L, Marciani MG (1999). EEG recognition of imagined hand and foot movements through signal space projection. Medical & Biological Engineering & Computing, London, UK ,37(2): 542-543, 1999.
