Walk!

separator images

This is one of the programs that I have developed and used for my scientific bio-mechanical publications (ref. 4, 6, 7, 8, 9, 10). This tool performs the 3-D gait analysis of subjects that where recorded with BTS Elite system, even if it can be extended to other 3-D motion acquisition systems. It is possible to filter the 3-D trajectories as well as compute the velocities, accelerations, limbs angles, energies (divided in all the subcomponents), and the covariation plane that was described in details in the publication section (Borghese et. al. 1996). It is also possible to analize EMG data and ground reaction forces acquired in sync with the Elite System. This has been the only Elite Data viewer under Microsoft Windows platform for years, and a lot of computation capabilities are still unsupported by other programs.

Screen Shots

covariation plane

Fig. 1) The “Covariation Plane” Window (OpenGL)


Energy cost during walking

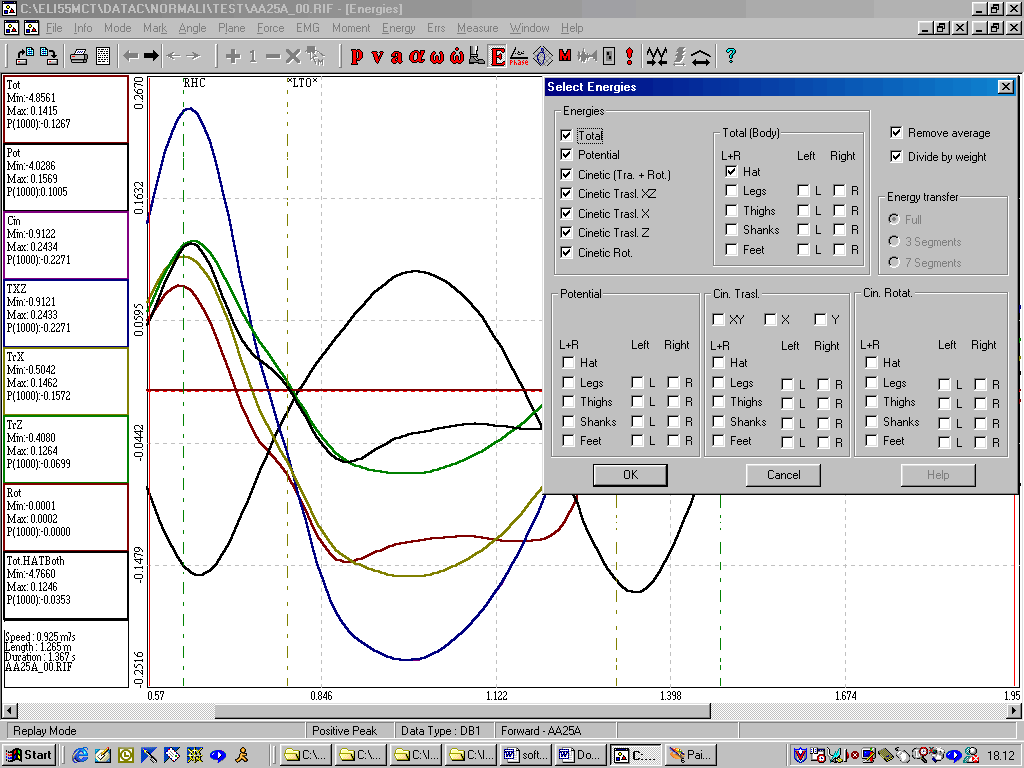

Fig. 2) The “Energies” Window


Energy cost during walking

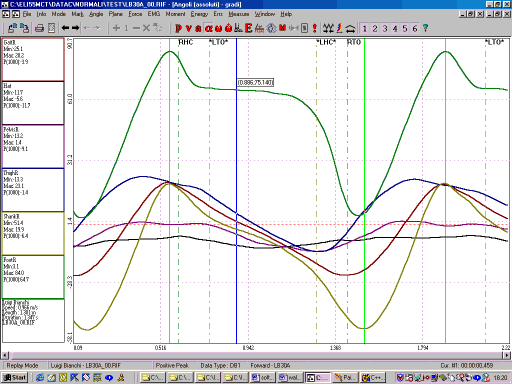

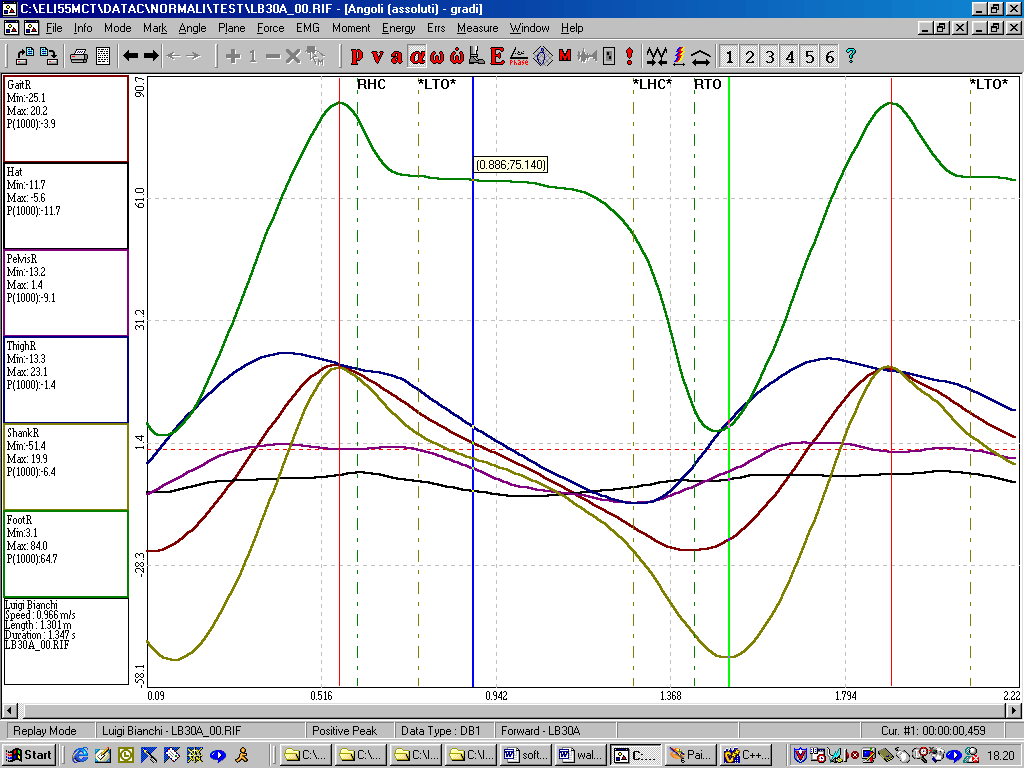

Fig. 3) The “Trajectories” Window


Export Analysis To 3-D Studio #1

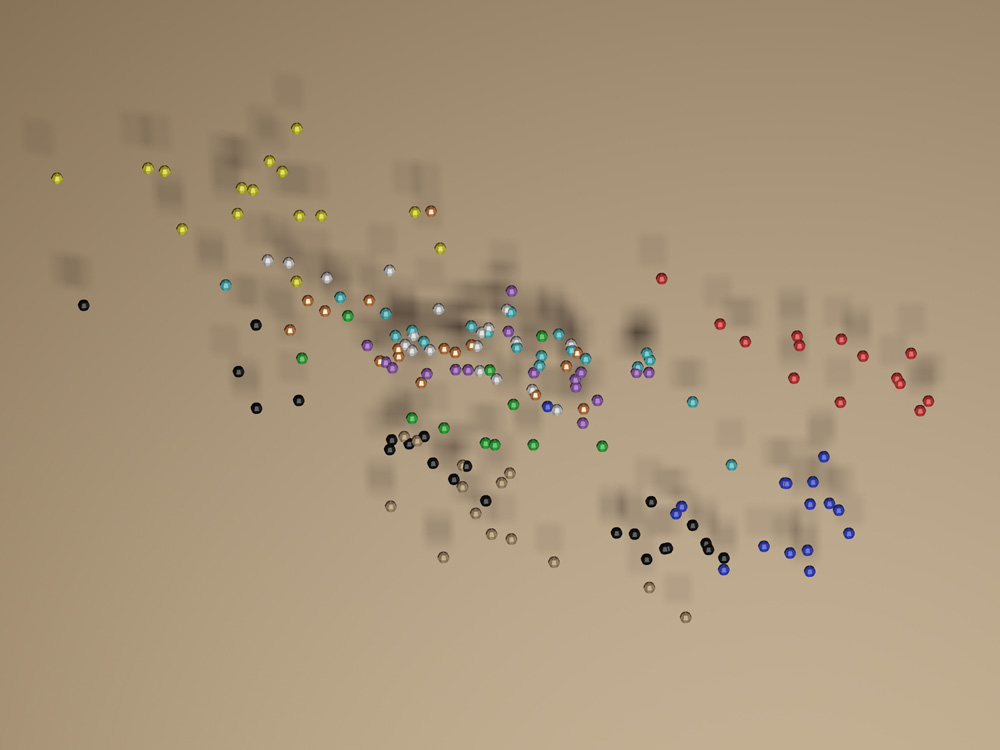

Fig. 4) The “Export To 3-D Studio” result #1




Export Analysis To 3-D Studio #2

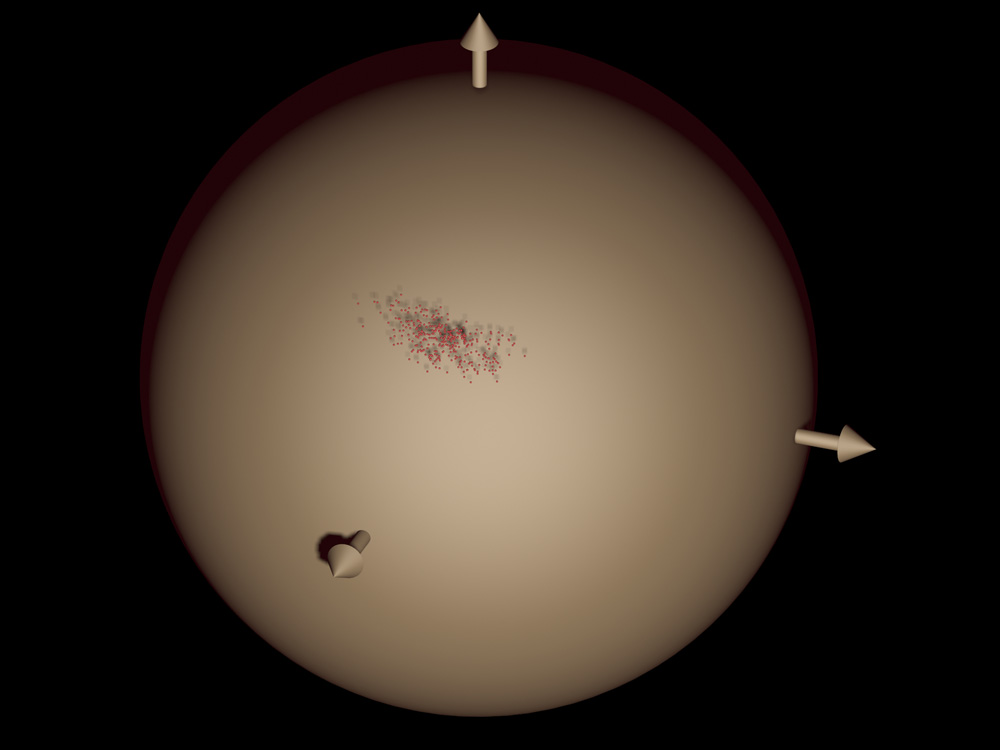

Fig. 5) The “Export To 3-D Studio” result #2


Export to Excel / Statistica

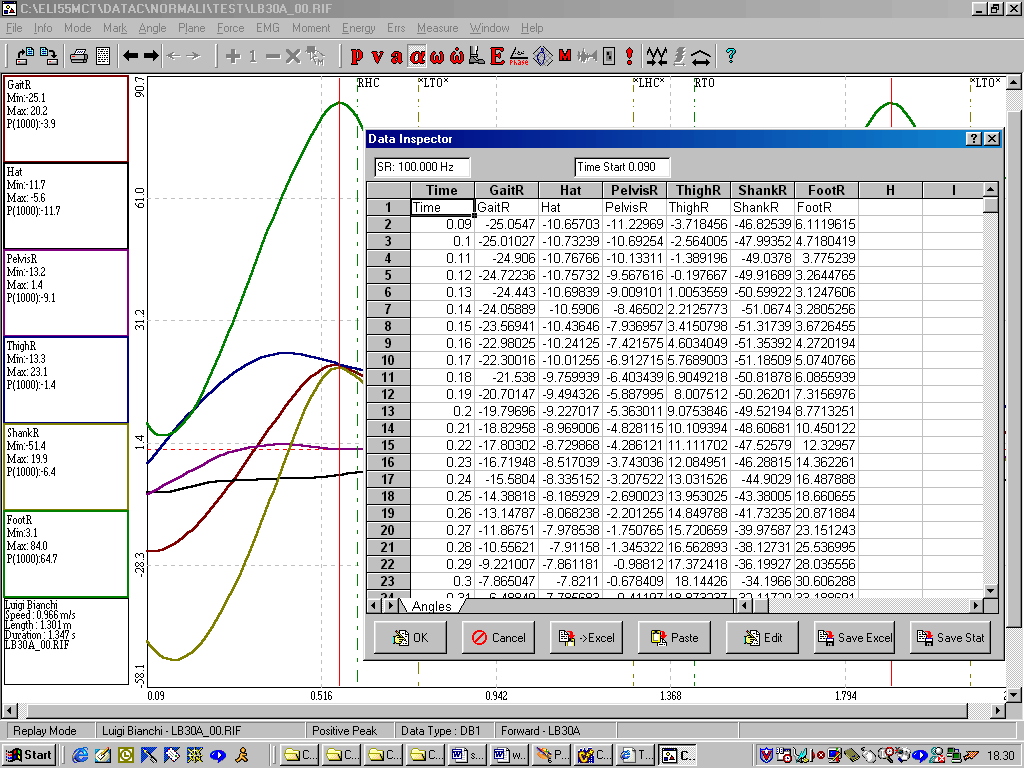

Fig. 6) The “Export To Excel / Statistica” Form


Related Publications

Bianchi L, Monaldi F, Paolucci S, Iani C, Lacquaniti F (1999) Quantitative analysis of the pendulum test: application to multiple sclerosis patients treated with botulinum toxin. Funct Neurol. Apr-Jun;14(2):79-92.

Bianchi L, Angelini D, Lacquaniti F (1998) Individual characteristics of human walking mechanics. Eur J Physiol, 436:343-356.

Bianchi L, Angelini D, Orani G, Lacquaniti F (1998) Kinematic Coordination in Human Gait: Relation to Mechanical Energy Cost. J Neurophysiol, 79(4):2155-70.

Grasso R, Bianchi L, Lacquaniti F (1998) Motor patterns for human gait: backward versus forward locomotion. J Neurophysiol, 80(4):1868-85.

Lacquaniti F, Maioli C, Borghese N A, Bianchi L (1997) Posture and movement: coordination and control. Arch Ital Biol, 135:353-367.

Borghese N A, Bianchi L, Lacquaniti F (1996) Kinematic determinants of human locomotion.  J. Physiol, 494.3:863-879.
